User Interface Modules
Add Versatility to Your Video Surveillance Systems
PCAP Button User Interface Modules
UIM001-00
12 Button PCAP User Interface Module
DZUS rack mountable with customized icons, user defined button functions, and RS485 serial output using MODBUS protocol
UIM002-00
12 Button PCAP User Interface Module
Same functionality as the 6 button module with 12 buttons available for customer customization
UIM002-02

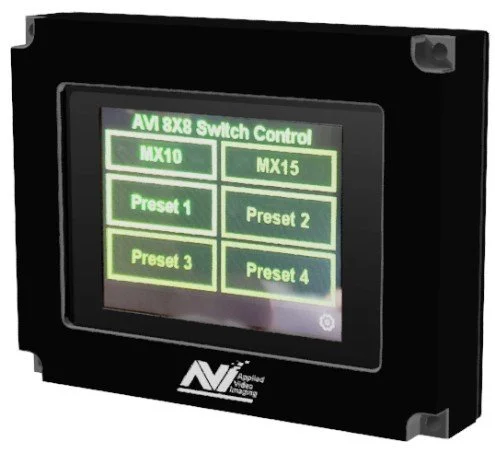

12 Button PCAP 8X8 Switch Controller
DZUS rack mountable switch controller allowing for preset selection or manual video routing from AVI’s 8X8 Switch
UIM003-00
18 Button PCAP User Interface Module
Same functionality as the 6 and 12 button modules with 18 buttons available for customer customization
Download the datasheet for AVI’s PCAP User Interface Modules:
UIM001-01
6 Button Mechanical User Interface Module
DZUS rack mountable with customized icons, user defined button functions, and RS485 serial output using MODBUS protocol
UIM002-01
12 Button Mechanical User Interface Module
Same functionality as the 6 button module with 12 buttons available for customer customization
UIM003-01
18 Button Mechanical User Interface Module
Same functionality as the 6 and 12 button modules with 18 buttons available for customer customization
Mechanical Button User Interface Modules
Download the datasheet for AVI’s Mechanical User Interface Modules:
UIRS02-00
Programmable Rotary Switch with Customizable Labels
2 to 16 position rotary switch with customizable labels and 4 customer defined GPIO outputs
