Rugged Multi-Channel 3G-SDI Video Reclockers
Applied Video Imaging's S10020X-00 series provides rugged, multi-channel 3G-SDI video signal reclocking and reconditioning for airborne surveillance, military mission systems, and other demanding applications.
Each independent channel accepts one SDI video input and provides one re-clocked and reconditioned SDI output, helping maintain signal integrity in complex video distribution systems. The reclocking process reduces accumulated timing jitter, helping support reliable SDI video transmission between cameras, video processors, displays, and recording equipment.
The series is available in three configurations:

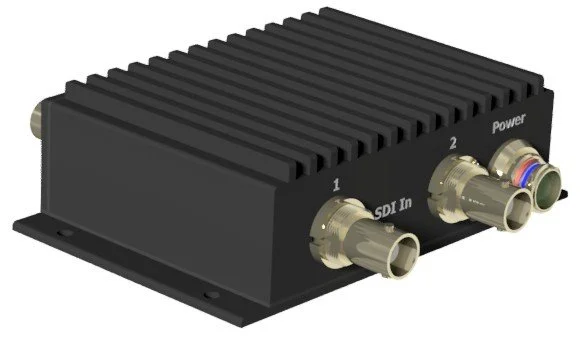

S100202-00: Two independent SDI reclocking channels with 2 inputs and 2 outputs.

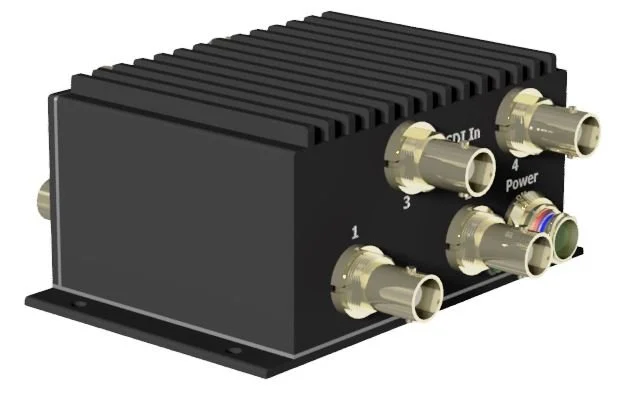

S100204-00: Four independent SDI reclocking channels with 4 inputs and 4 outputs.

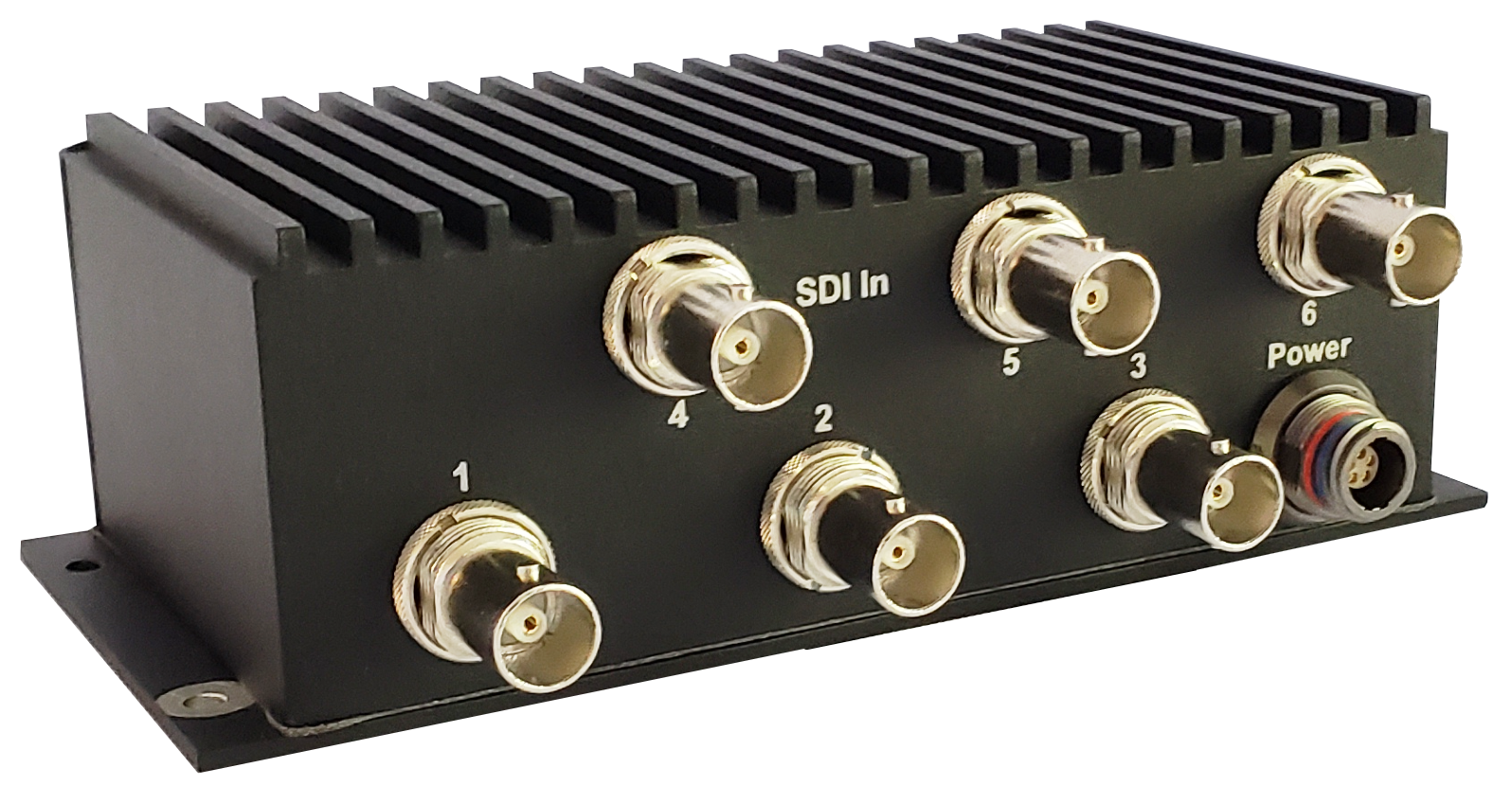

S100206-00: Six independent SDI reclocking channels with 6 inputs and 6 outputs.
Designed for integration into rugged mission systems, the S10020X-00 series provides a compact solution for restoring SDI signal quality across multiple independent video paths.
S100202-00
Two independent channel 3-G SDI reclocker
Specifications:
Input Voltage: 9-36V DC, 28V Typ.
Inputs: 2 total, 1 × 3-G SDI per channel up to 1080p 60Hz
Outputs: 2 total, 1 × Reconditioned 3-G SDI per channel up to 1080p 60Hz
Current Draw: 0.15A @ 28VDC
Control Interfaces: None
Environmental: DO-160G
Typical Applications: surveillance systems, airborne law enforcement, military missions systems
S100204-00
Four independent channel 3-G SDI reclocker
Specifications:
Input Voltage: 9-60V DC, 28V Typ.
Inputs: 4 total, 1 × 3-G SDI per channel up to 1080p 60Hz
Outputs: 4 Total, 1 × Reconditioned 3-G SDI per channel up to 1080p 60Hz
Current Draw: 0.20A @ 28VDC
Control Interfaces: None
Environmental: DO-160G Tested
Typical Applications: surveillance systems, airborne law enforcement, military missions systems
S100206-00
Six independent channel 3-G SDI reclocker
Specifications:
Input Voltage: 9-60V DC, 28V Typ.
Inputs: 6 total, 1 × 3-G SDI per channel up to 1080p 60Hz
Outputs: 6 Total, 1 × Reconditioned 3-G SDI per channel up to 1080p 60Hz
Current Draw: 0.30A @ 28VDC
Control Interfaces: None
Environmental: DO-160G Tested
Typical Applications: surveillance systems, airborne law enforcement, military missions systems
