Rugged 3G-SDI Video Splitters and Distribution Amplifiers
Applied Video Imaging's S05020X-00 series provides rugged, multi-channel 3G-SDI video distribution for airborne surveillance, military mission systems, and other demanding applications.
Each independent channel accepts one SDI video input and distributes it to four re-clocked and reconditioned SDI outputs, providing reliable video signal distribution across multiple displays, recorders, and other video equipment.
The series is available in three configurations to accommodate different system requirements:
S050201-00: Single-channel 1×4 SDI splitter with 1 input and 4 outputs.
S050202-00: Dual-channel SDI splitter with 2 independent inputs and 8 total outputs.
S050204-00: Four-channel SDI splitter with 4 independent inputs and 16 total outputs.
Designed for integration into rugged video systems, the S05020X-00 series provides a scalable solution for distributing SDI video signals without requiring a separate splitter for each video source.
S050201-00
Single channel 1X4 3-G SDI splitter
Specifications:
Input Voltage: 9-36V DC, 28V Typ.
Inputs: 1 × 3-G SDI up to 1080p 60Hz
Outputs: 4 × Reconditioned 3-G SDI up to 1080p 60Hz
Current Draw: 0.05A @ 28VDC
Control Interfaces: None
Environmental: DO-160G Tested
Typical Applications: surveillance systems, airborne law enforcement, military missions systems

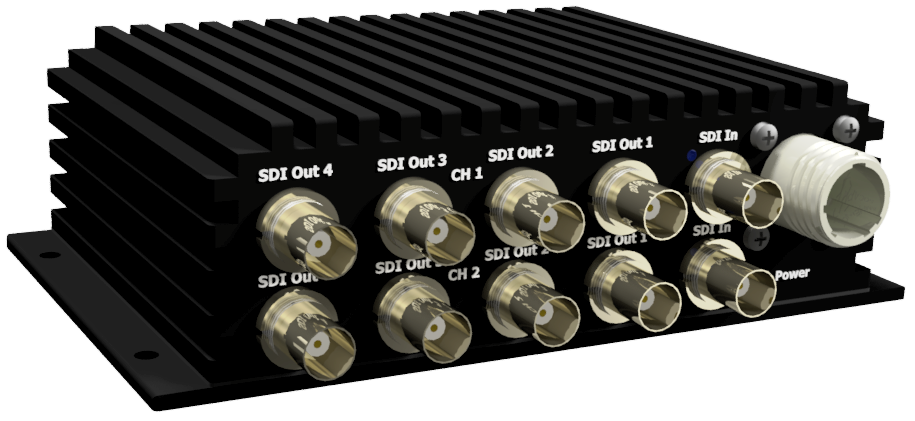

S050202-00
Two channel model with 2 independent 1X4 splitters
Specifications:
Input Voltage: 9-60V DC, 28V Typ.
Inputs: 2 × 3-G SDI up to 1080p 60Hz
Outputs: 8 Total, 4 × 3-G SDI per channel up to 1080p 60Hz
Current Draw: 0.08A @ 28VDC
Control Interfaces: None
Environmental: DO-160G Tested
Typical Applications: surveillance systems, airborne law enforcement, military missions systems

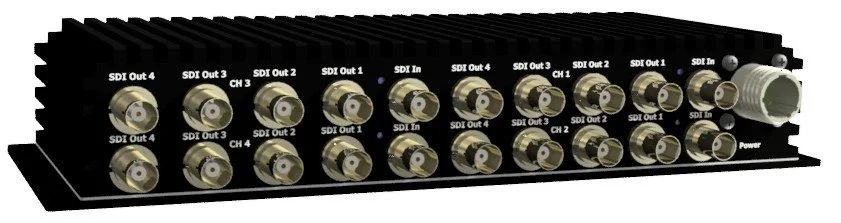

S050204-00
Four channel model with 4 independent 1X4 splitters
Specifications:
Input Voltage: 9-60V DC, 28V Typ.
Inputs: 4 × 3-G SDI up to 1080p 60Hz
Outputs: 16 Total, 4 × 3-G SDI per channel up to 1080p 60Hz
Current Draw: 0.13A @ 28VDC
Control Interfaces: None
Environmental: DO-160G Tested
Typical Applications: surveillance systems, airborne law enforcement, military missions systems
